Product Description

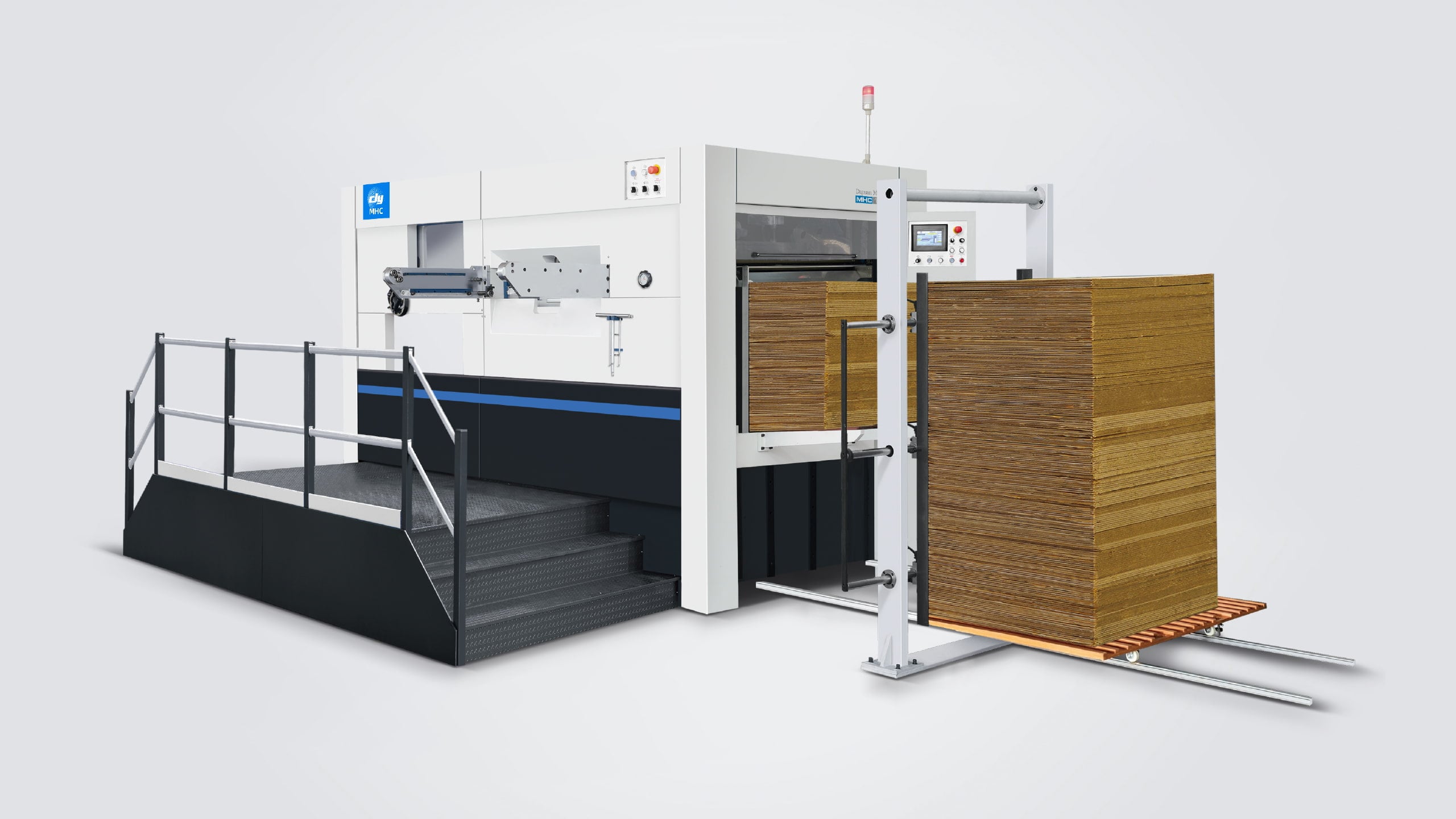

The MHC series Semi-automatic Die Cutting & Creasing Machine adopts high-strength paper-gripping gripper bars. It is suitable for various types of paper. Controlled by a computer, it features simple and clear operation. Sensors and safety devices are installed in multiple parts of the machine body to ensure the normal operation of the machine and personal safety.
 |  |  |
Paper feed unit | Gripper bar | Die-cutting section |
 |  |  |
Stripping section | Paper collecting unit | Electrical unit |
 | ||
Concentrate lubrication |
Main Technical Parameters
|
Model |
MHC-1100B MHC-1100BC |
MHC-1300B MHC-1300BC |
MHC-1350B MHC-1350BC |
MHC-1500B MHC-1500BC |
MHC-1650B MHC-1650BC |
MHC-1900B |
|
Maximum Sheet Size |
1100×790mm |
1290×940mm |
1350×1100mm |
1500×1100mm |
1650×1200mm |
1900×1400mm |
|
Minimum Sheet Size |
400×350mm |
470×450mm |
470×450mm |
470×450mm |
550×500mm |
650×550mm |
|
Maximum Cutting Size |
1070×770mm |
1280×920mm |
1330×1080mm |
1480×1080mm |
1620×1180mm |
1870×1380mm |
|
Minimum Gripper Margin |
9-17mm |
9-17mm |
9-17mm |
9-17mm |
9-17mm |
9-17mm |
|
Minimum Width of Cuts |
-- / 10-18mm |
-- / 10-18mm |
-- / 10-18mm |
-- / 10-18mm |
-- / 10-18mm |
/ |
|
Cutting Rule Height |
23.8mm |
23.8mm |
23.8mm |
23.8mm |
23.8mm |
23.8mm |
|
Inner Chase Size |
1120×786mm |
1310×948mm |
1360×1118mm |
1510×1118mm |
1682×1219mm |
1912×1419mm |
|
Stock Range |
Corrugated board: ≤7mm, E, B, C, A and AB corrugated paper |
Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper |
Corrugated board: ≤8.5mm, E,B,C,A and AB corrugated paper |
Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper |
Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper |
Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper |
|
Die Cutting Accuracy |
≤±0.1mm |
≤±0.1mm |
≤±0.1mm |
≤±0.1mm |
≤±0.1mm |
≤±0.1mm |
|
Max.die Cutting Force |
300T |
400T |
400T |
400T |
400T |
300T |
|
Max.working Speed |
7500s/h |
5500s/h |
5500s/h |
5500s/h |
4500s/h |
3500s/h |
|
Maximum Feeder Pile Height |
1600mm |
1600mm |
1600mm |
1600mm |
1600mm |
1600mm |
|
Maximum Delivery Pile Height |
1400mm |
1400mm |
1400mm |
1400mm |
1400mm |
1400mm |
|
Main Motor Power |
11KW |
11KW |
15KW |
15KW |
18.5KW |
18.5KW |
|
Full Load Wattage |
14KW / 15KW |
14KW / 15KW |
18KW / 20KW |
18KW / 20KW |
22KW / 24KW |
22KW |
|
Air Requirement |
0.6-0.7MPa，≥0.37m³/min |
0.6-0.7MPa，≥0.37m³/min |
0.6-0.7MPa，≥0.37m³/min |
0.6-0.7MPa，≥0.37m³/min |
0.6-0.7MPa，≥0.75m³/min |
0.6-0.7MPa，≥0.75m³/min |
|
Net Weight of Machine |
13T / 14T |
15T / 16T |
16T / 17T |
17T / 18T |
20T / 21T |
26T |
|
Machine Dimensions(L×W×H) |
6300×4256×2350mm(B) |
6023×4506×2467mm(B) |
6295×4506×2452mm(B) |
6295×4706×2452mm(B) |
6646×5117×2582mm(B) |
8100×5872×2525mm |
|
7683×4256×2350mm(BC) |
7880×4506×2467mm(BC) |
8095×4506×2452mm(BC) |
8095×4706×2452mm(BC) |
8646×5117×2582mm(BC) |
